Hybrid Partition Table in Oracle 19c

By -

 Hybrid Partitioning is a new feature introduced in Oracle 19c. Using this feature, you can create a combination of external and internal partitions for a single table.

Reminder: For a table or partition of type external, only the metadata and its definition are stored in the database; the actual data resides outside the database at the operating system level.

Example:
Suppose we want to store information such as national ID, first name, last name, and organization ID in a table named mytbl. Using the following statement, we will partition the table based on org_id:

CREATE TABLE mytbl(national_id NUMBER, name VARCHAR2(20),last_name VARCHAR2(20),org_id number)

PARTITION BY LIST (org_id)

    (

        PARTITION p1 VALUES (1),

        PARTITION p2 VALUES (2)

    );

We want to store the information of people with org_id 1 and 2 inside the database (internal):

insert into mytbl values(100,’ali’,’rezai’,1);

insert into mytbl values(101,’hadi’,’alavi’,1);

insert into mytbl values(102,’reza’,’karimi’,2);

insert into mytbl values(103,’hossein’,’akbari’,2);

commit;

For certain reasons, we want to store the data of people with org_id 3 and 4 outside the database as external data. This information is stored in two files: part3.txt and part4.txt:

 [oracle@ol7 ~]$ cat /part3/part3.txt

104,javad,akbarian,3

105,mina,karimi,3

106,sima,kabiri,3

107,nima,kasiri,3

[oracle@ol7 ~]$ vi /part4/part4.txt

108,kimya,hasani,4

109,kobra,armani,4

110,kazem,kalvandi,4

111,usef,kalvani,4

To access this data within the database, we create two directories named part3dir and part4dir:

SQL> create directory part3dir as ‘/part3’;

Directory created.

SQL> create directory part4dir as ‘/part4’;

Directory created.

Using the Hybrid Partitioning feature, we now add two external partitions to the mytbl table:

– Enable EXTERNAL PARTITION attribute for the mytbl table:

ALTER TABLE mytbl

 ADD EXTERNAL PARTITION ATTRIBUTES

 (TYPE ORACLE_LOADER

  DEFAULT DIRECTORY part3dir

  ACCESS PARAMETERS (

  FIELDS TERMINATED BY ‘,’ (national_id,name,last_name,org_id)

  )

  );

– Add the required partitions:

ALTER TABLE mytbl ADD PARTITION p3 VALUES (3) EXTERNAL LOCATION (part3dir:’part3.txt’);

ALTER TABLE mytbl ADD PARTITION p4 VALUES (4) EXTERNAL LOCATION (part4dir:’part4.txt’);

After adding these two partitions, the table structure will look like this:

create table MYTBL

(

  national_id NUMBER,

  name        VARCHAR2(20),

  last_name   VARCHAR2(20),

  org_id      NUMBER

)

organization external

(

  type ORACLE_LOADER

  default directory PART3DIR

  access parameters

  (

    FIELDS TERMINATED BY ‘,’ (national_id,name,last_name,org_id)

  )

)

reject limit 0

partition by list (ORG_ID)

(

partition P1 values (1),

partition P2 values (2),

partition P3 values (3),

partition P4 values (4)

);

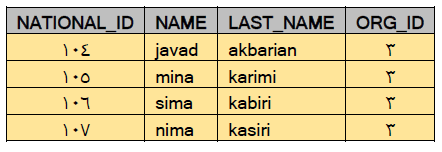

Now you can access the externally stored data as well. For example, to see only the data of people with org_id=3, run:

select * from mytbl where org_id=3;

You can check the execution plan for org_id=2 and org_id=3 as follows:

select * from mytbl where org_id=2;
select * from mytbl where org_id=3;

Key Features and Limitations of Hybrid Partitioning

  1. Only partial indexes are supported for such tables:
SQL> create index ind1 on mytbl(name);

 ORA-14354: operation not supported for a hybrid-partitioned table

SQL> create index ind1 on mytbl(name) local;

 ORA-14354: operation not supported for a hybrid-partitioned table

SQL> create index ind1 on mytbl(name) indexing partial;

 Index created

SQL> create index ind1 on mytbl(name) local indexing partial;

 Index created

2. DML operations can only be performed on internal partitions:

SQL> insert into mytbl values(130,’hossein’,’zaker’,4);

 ORA-14466: Data in a read-only partition or subpartition cannot be modified.

SQL> insert into mytbl values(130,’hossein’,’zaker’,1);

 1 row inserted

3. LOB and LONG data types cannot be added to these tables:

SQL> alter table MYTBL add pic blob;

ORA-03001: unimplemented feature

SQL> alter table MYTBL add id number;

 Table altered

4. To find tables using Hybrid Partitioning, you can run this query:

select TABLE_NAME,HYBRID from user_tables  where HYBRID=’YES’;
Vahid Yousefzadeh

Written by Vahid Yousefzadeh

I have been a DBA since 2011 and I work with Oracle technology. Linkdin: linkedin.com/in/vahidusefzadeh telegram channel ID:@oracledb vahidusefzadeh@gmail.com
