Real-Time Statistics in Oracle 19c

By -

 Until Oracle version 12c, executing DML statements on a table (either using the conventional method or direct-path) would not update the table’s statistics, and online statistics gathering was only possible when creating an index.

In version 12c, a minor improvement was introduced: during a bulk load operation on a table, its statistics could be updated online. However, for DML statements executed in conventional mode, the table’s statistics still remained unchanged.

One of the new features in Oracle 19c is Real-Time Statistics, which allows certain important statistics to be updated online during the execution of DML statements.

This new feature only improves the process of statistics gathering — the underlying mechanism for collecting statistics remains the same as before in this Oracle version.

In the example below, we will explore this new Oracle feature in more detail.

Example:
We create the table mytbl with the following command

SQL> CREATE TABLE usef.mytbl (id NUMBER, name VARCHAR2(100));

Table created

As expected, no statistics are recorded for this table:

SQL> select table_name, num_rows,last_analyzed from dba_tab_statistics where table_name=’MYTBL’;
Press enter or click to view image in full size
SQL> select table_name, column_name, low_value, high_value,notes,LAST_ANALYZED from dba_tab_col_statistics where table_name=’MYTBL’;

no rows selected

We manually update the statistics for this table:

SQL> exec DBMS_STATS.GATHER_TABLE_STATS(‘USEF’, ‘MYTBL’, METHOD_OPT=>’FOR ALL COLUMNS SIZE 5′);

PL/SQL procedure successfully completed
SQL> select table_name, num_rows,last_analyzed from dba_tab_statistics where table_name=’MYTBL’;
Press enter or click to view image in full size

Now, let’s insert 1,000 records into this table:

SQL> BEGIN

  2     for i in 1..1000 loop

  3        insert into usef.MYTBL values(i,’DBA’);

  4     end loop;

  5  END;

  6  /

PL/SQL procedure successfully completed

We check the statistics in the dba_tab_statistics and dba_tab_col_statistics views:

select owner,table_name, num_rows,last_analyzed,notes from dba_tab_statistics where table_name=’MYTBL’;
Press enter or click to view image in full size
select column_name, low_value, high_value,notes,LAST_ANALYZED from dba_tab_col_statistics s where notes = ‘STATS_ON_CONVENTIONAL_DML’ and table_name=’MYTBL’;
Press enter or click to view image in full size

By checking the NOTES column in these views, we can see that the statistics were updated as STATS_ON_CONVENTIONAL_DML. However, these gathered statistics are written to disk periodically, and the following command can be used to flush them from memory to disk when needed:

SQL> EXEC DBMS_STATS.FLUSH_DATABASE_MONITORING_INFO;

PL/SQL procedure successfully completed

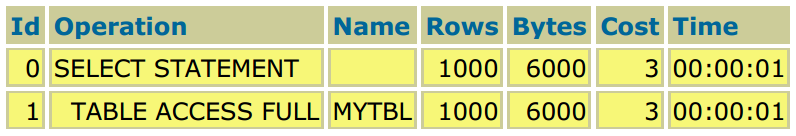

A FULL TABLE SCAN on mytbl now has a cost of 3:

SQL> select count(*) from mytbl;
Press enter or click to view image in full size

If we insert another 1 million rows into this table, we will see that the execution plan changes automatically:

BEGIN

   for i in 1..1000000 loop

      insert into usef.MYTBL values(i,’DBA’);

   end loop;

END;

/

In the updated plan, the cost of a FULL TABLE SCAN for this table changes to 550:

SQL> EXEC DBMS_STATS.FLUSH_DATABASE_MONITORING_INFO;

PL/SQL procedure successfully completed
SQL> select * from mytbl;
Press enter or click to view image in full size

When we execute the following query, we can confirm that the statistics gathered during the DML operations are indeed used in the execution plan:

SQL> select count(*) from usef.mytbl;

  COUNT(*)

———-

   1000000
SQL> SELECT * FROM TABLE(DBMS_XPLAN.DISPLAY_CURSOR(format=>’TYPICAL‘));

Plan hash value: 404528059
----------------------------------------------------------------
| Id  | Operation          | Name  | Rows  | Cost (%CPU)| Time |
----------------------------------------------------------------
|   0 | SELECT STATEMENT   |       |       |   550 (100)|      |
|   1 |  SORT AGGREGATE    |       |     1 |            |      |
|   2 |   TABLE ACCESS FULL| MYTBL | 1001K |   550   (1)|00:00:01|
----------------------------------------------------------------

Note

   – dynamic statistics used: statistics for conventional DML

The Real-Time Statistics feature can be disabled using the hidden parameter optimizer_gather_stats_on_conventional_dml_ at the system or session level. It can also be disabled for a specific statement using the NO_GATHER_OPTIMIZER_STATISTICS hint.
